Coal Ball Press Briquette Machine Charcoal Briquette Making Machine

Basic Info

Pressing Mode	Twin-roller
Condition	New

Product Description

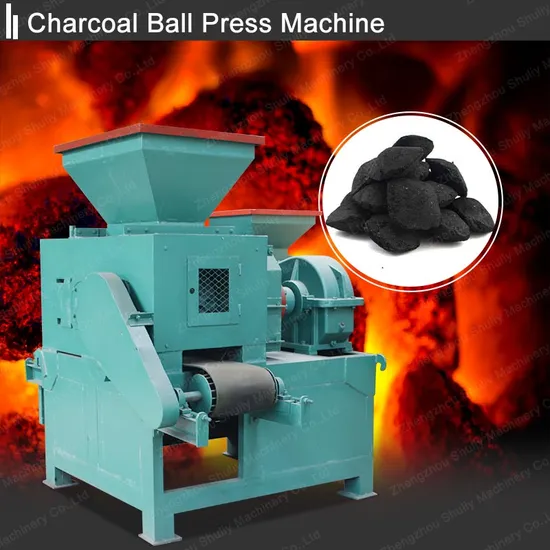

Coal Ball Press Briquette Machine Charcoal Briquette Making Machine

Coal briquette press machines, is used to process the charcoal powder into charcoal briquettes.Mature technology,stable performance and easy operation,our charcoal powder briquette machine enjoys extensive popularity among clients.With high Calorific value and density, the charcoal briquettes produced by our charcoal powder briquette machine are most suitable for industrial boilers, home heating, barbecue,etc.

Working principle

From the storage silo, the material is fed into the molding machine hopper evenly by the quantitative device. Then the regulation board on the hopper make the materal evenly enter into the middle of the roller; the reverse operating roller compress the material and the forming pressure increases gradually, at the centerline of the roll the forming pressure reaches its maximum value, once the material through the line, the molding pressure rapidly decrease so that the material forms into ball shape and smoothly discharge the ball

Model	Output	Annual output	Motor power
SL-290	2T/H	5000Ton	5.5KW
SL-360	4 T/H	10000Ton	7.5 KW
SL-400	6 T/H	15000 Ton	11 KW
SL-430	7 T/H	17000 Ton	11 KW
SL-450	8 T/H	20000 Ton	15 KW
SL-500	10 T/H	25000 Ton	18.5 KW
SL-600	12 T/H	30000 Ton	22 KW
SL-650	14 T/H	35000 Ton	30 KW
SL-750	17 T/H	40000 Ton	37 KW
SL-800	20 T/H	50000 Ton	45 KW
SL-1200	40 T/H	100000 Ton	75 KW

It can press different powder into different shape. Such as, coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum can be press into round and pillow shape. The purpose of briquette press machine is to reduce dust, control volumeweight, improve transport characters and recycle materials. Briquette press machine has advanced technology and reliable quality. It is suitable for large, medium and small factory to build large scale production line. It is applied to industrial gas making, boiler, cold briquetting process, fired briquette, civilian use coal briquette, metallurgy, refractory materials, medicals and other fields.
